Single-lens reflex digital camera

Nikon F mount, (with AF coupling and AF contacts)

Nikon DX format; focal length in 35 mm [135] format equivalent to approx. 1.5x that of lenses with FX format angle of view

DX

CMOS

23.5mm, x15.6mm

24.72million

Image sensor cleaning, Image Dust Off reference data (Capture NX-D software required)

24.2million

DX (24x16) image area, (L)6000, x4000, (M)4496, x3000, (S)2992, x2000, 1.3x (18x12) image area, (L)4800, x3200, (M)3600, x2400, (S)2400, x1600, Photographs with image area of DX (24x16) taken with live view selector rotated to "movie live view" in live view, (L)6000, x3368, (M)4496, x2528, (S)2992, x1680, Photographs with image area of 1.3x (18x12) taken with live view selector rotated to "movie live view" in live view, (L)4800, x2696, (M)3600, x2024, (S)2400, x1344

NEF (RAW): 12 or 14 bit, lossless compressed or compressed, JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression (Size priority); Optimal quality compression available, NEF (RAW) + JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats

Standard, Neutral, Vivid, Monochrome, Portrait, Landscape, Flat, ; selected Picture Control can be modified; storage for custom Picture Controls

SD, SDHC (UHS-I compliant), SDXC (UHS-I compliant)

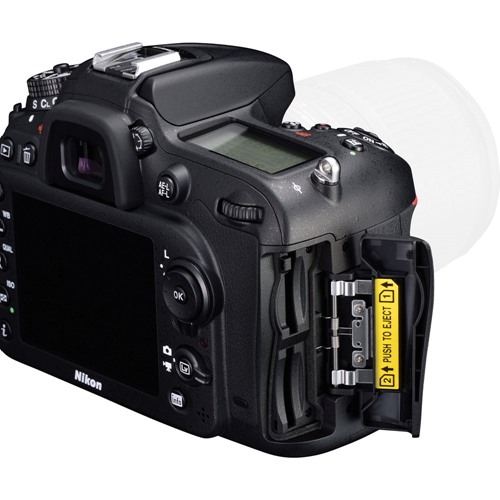

2 Secure Digital (SD) cards, Slot 2 can be used for overflow or backup storage or for separate storage of copies created using NEF+JPEG; pictures can be copied between cards.

DCF 2.0, DPOF, Exif 2.3, PictBridge

Eye-level pentaprism single-lens reflex viewfinder

DX (24x16) image area: Approx. 100% horizontal and 100% vertical, 1.3x (18x12) image area: Approx. 97% horizontal and 97% vertical

Approx. 0.94 x (50 mm f/1.4 lens at infinity, –1.0 m{sup(-1)})

19.5 mm (–1.0 m{sup(-1)}; from center surface of viewfinder eyepiece lens)

-2 to +1 m{sup(-1)}

Type B BriteView Clear Matte Mark II screen with AF area brackets (framing grid can be displayed)

Quick-return type

Yes, Pressing Pv button stops lens aperture down to value selected by user (A and M modes) or by camera (other modes)

Instant return, electronically controlled

Compatible with AF NIKKOR lenses, including type G, E, and D lenses (some restrictions apply to PC lenses) and DX lenses, AI-P NIKKOR lenses, and non-CPU AI lenses (A and M modes only). IX NIKKOR lenses, lenses for the F3AF, and non-AI lenses can not be used. The electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster (the electronic rangefinder supports the center 1 focus point with lenses that have a maximum aperture of f/8 or faster).

Electronically-controlled vertical-travel focal-plane shutter

1/8000to, 30s, in steps of 1/3 or 1/2 EV, bulb, time, X250

X=, 1/250s;, synchronizes with shutter at 1/320 s or slower (flash range drops at speeds between 1/250 and 1/320 s)

S (single frame), CL (continuous low speed), CH (continuous high speed), Q (quiet shutter-release), Self-timer, MUP (mirror up)

JPEG and 12-bit NEF (RAW) images recorded with DX (24x16) selected for Image area CL: 1–6 fps CH: 6 fps JPEG and 12-bit NEF (RAW) images recorded with 1.3x (18x12) selected for Image area CL: 1–6 fps CH: 7 fps 14-bit NEF (RAW) images recorded with DX (24x16) selected for Image area CL: 1–5 fps CH: 5 fps 14-bit NEF (RAW) images recorded with 1.3x (18x12) selected for Image area CL: 1–6 fps CH: 6 fps

2 s, 5 s, 10 s, 20 s; 1–9 exposures at intervals of 0.5, 1, 2, or 3 s

Delayed remote, quick-response remote, remote mirror-up

TTL exposure metering using 2016-pixel RGB sensor

Matrix: 3D color matrix metering II (type G, E, and D lenses); color matrix metering II (other CPU lenses); color matrix metering available with non-CPU lenses if user provides lens data Center-weighted: Weight of approximately 75% given to 8 mm circle in center of frame. Diameter of circle can be changed to 6, 10, or 13 mm, or weighting can be based on average of entire frame (non-CPU lenses use 8-mm circle) Spot: Meters circle with diameter of about 3.5 mm (about 2.5% of frame) centered on selected focus point (on center focus point when non-CPU lens is used)

(ISO 100, f/1.4 lens, 20 {deg}C/68 {deg}F) Matrix or center-weighted metering: 0–20 EV Spot metering: 2–20 EV

CPU, AI

Auto modes (auto; auto (flash off)); scene modes (portrait; landscape; child; sports; close up; night portrait; night landscape; party/indoor; beach/snow; sunset; dusk/dawn; pet portrait; candlelight; blossom; autumn colors; food); special effects modes (night vision; color sketch; miniature effect; selective color; silhouette; high key; low key); programmed auto with flexible program (P); shutter-priority auto (S); aperture-priority auto (A); manual (M); U1 (user settings 1); U2 (user settings 2)

Can be adjusted by –5 to +5EV, in steps of1/3 or 1/2EV, in P, S, A, M, SCENE, and night vision modes

Luminosity locked at detected value with AE-L/AF-L button

ISO100to, 25600, in steps of1/3 or 1/2EV, In P, S, A, and M modes, can also be set to approx. 1 or 2 EV (ISO 102400 equivalent; monochrome only) above ISO 25600; auto ISO sensitivity control available

Auto, Extra high, High, Normal, Low, Off

Nikon Advanced Multi-CAM 3500 II autofocus sensor module with TTL phase detection, fine-tuning, 51 focus points (including 15 cross-type sensors; f/8 supported by 1 sensor), and AF-assist illuminator (range approx. 0.5–3 m/1 ft 8 in.–9 ft 10 in.)

–3 to +19 EV (ISO 100, 20 {deg}C/68 {deg}F)

Single-servo AF (AF-S), Continuous-servo AF (AF-C), Auto AF-S/AF-C selection (AF-A), ; predictive focus tracking activated automatically according to subject status, Manual focus (M):, Electronic rangefinder can be used

51, Can be selected from 51 or 11 focus points

Single-point AF; 9-, 21-, or 51-point dynamic-area AF, 3D-tracking, auto-area AF

Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing AE-L/AF-L button

Auto, portrait, child, close up, night portrait, party/indoor, pet portrait, color sketch: Auto flash with auto pop-up P, S, A, M, food: Manual pop-up with button release

Approx. 12/39, 12/39 with manual flash (m/ft, ISO 100, 20 {deg}C/68 {deg}F)

TTL: i-TTL flash control using 2016-pixel RGB sensor is available with built-in flash; i-TTL balanced fill-flash for digital SLR is used with matrix or center-weighted metering, standard i-TTL fill-flash for digital SLR with spot metering

Auto, auto with red-eye reduction, auto slow sync, auto slow sync with red-eye reduction, fill-flash, red-eye reduction, slow sync, slow sync with red-eye reduction, rear-curtain with slow sync, rear-curtain sync, off; Auto FP High-Speed Sync supported

-3 to +1 EV in steps of 1/3 or 1/2 EV

Lights when built-in flash or optional flash unit is fully charged; blinks after flash is fired at full output

ISO 518 hot-shoe with sync and data contacts and safety lock

Nikon CLS supported; commander mode option available

AS-15 sync terminal adapter (available separately)

Auto (2 types), incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual (up to 6 values can be stored, spot white balance measurement available during live view), choose color temperature (2500 K–10,000 K), all with fine-tuning

Exposure, Flash, White balance, ADL

Photo live view, Movie live view

Autofocus (AF): Single-servo AF (AF-S); full-time servo AF (AF-F) Manual focus (M)

Face-priority AF, Wide-area AF, Normal-area AF, Subject-tracking AF

Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)

TTL exposure metering using main image sensor

Matrix or center-weighted

1920 x 1080; 60p (progressive), 50p, 30p, 25p, 24p 1280 x 720; 60p, 50p Actual frame rates for 60p, 50p, 30p, 25p, and 24p are 59.94, 50, 29.97, 25, and 23.976 fps respectively; options support both high and normal image quality 1920 x 1080; 60p and 50p are available only when 1.3x (18x12) is selected for Image area in the movie shooting menu

MOV

H.264/MPEG-4 Advanced Video Coding

Linear PCM

Built-in or external stereo microphone; sensitivity adjustable

Index marking, time-lapse photography

8cm (3.2–in.) diagonal

TFT monitor with approx. 170{deg} viewing angle, approx. 100% frame coverage, and brightness adjustment

Approx.1229k-dot, (VGA; 640 x RGBW x 480 = 1,228,800 dots)

Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, movie playback, photo and/or movie slide shows, histogram display, highlights, photo information, location data display, and auto image rotation

Hi-Speed USB, Connection to built-in USB port is recommended

Type C HDMI connector

Stereo mini-pin jack (3.5mm diameter; plug-in power supported)

Stereo mini-pin jack (3.5 mm diameter)

Wireless remote controllers: WR-1, WR-R10 (available separately) Remote cord: MC-DC2 (available separately) GPS unit: GP-1/GP-1A (available separately)

IEEE 802.11b, IEEE 802.11g

2412–2462 MHz (channels 1–11)

Approximately 30 m/98 ft (assumes no interference; range may vary with signal strength and presence or absence of obstacles)

54 Mbps Maximum logical data rates according to IEEE standard. Actual rates may differ.

Authentication: Open system, WPA2-PSK

Supports WPS

Infrastructure

NFC Forum Type 3 Tag

Arabic, Bengali, Bulgarian, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Marathi, Norwegian, Persian, Polish, Portuguese (Portugal and Brazil), Romanian, Russian, Serbian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian, Vietnamese

One EN-EL15 rechargeable Li-ion battery

Optional MB-D15 multi-power battery pack with one Nikon EN-EL15 rechargeable Li-ion battery or six AA alkaline, Ni-MH, or lithium batteries

EH-5b AC adapter; requires EP-5B power connector (available separately)

1/4–in. (ISO 1222)

Approx.135.5, x106.5, x76mm (5.4, x4.2, x3.0in.)

Approx.765g (1 lb 11.0 oz), with battery and memory card but without body cap; approx. 675 g (1 lb 7.9 oz; camera body only)

Temperature: 0 {deg}C–40 {deg}C (+32 {deg}F–104 {deg}F) Humidity: 85% or less (no condensation)

Rubber Eyecup DK-23, Body Cap BF-1B, Rechargeable Li-ion Battery EN-EL15 with terminal cover, Battery Charger MH-25a (comes with either an AC wall adapter or power cable of a type and shape that varies with the country or region of sale), Eyepiece Cap DK-5, USB Cable UC-E17, Strap AN-DC1 BK
